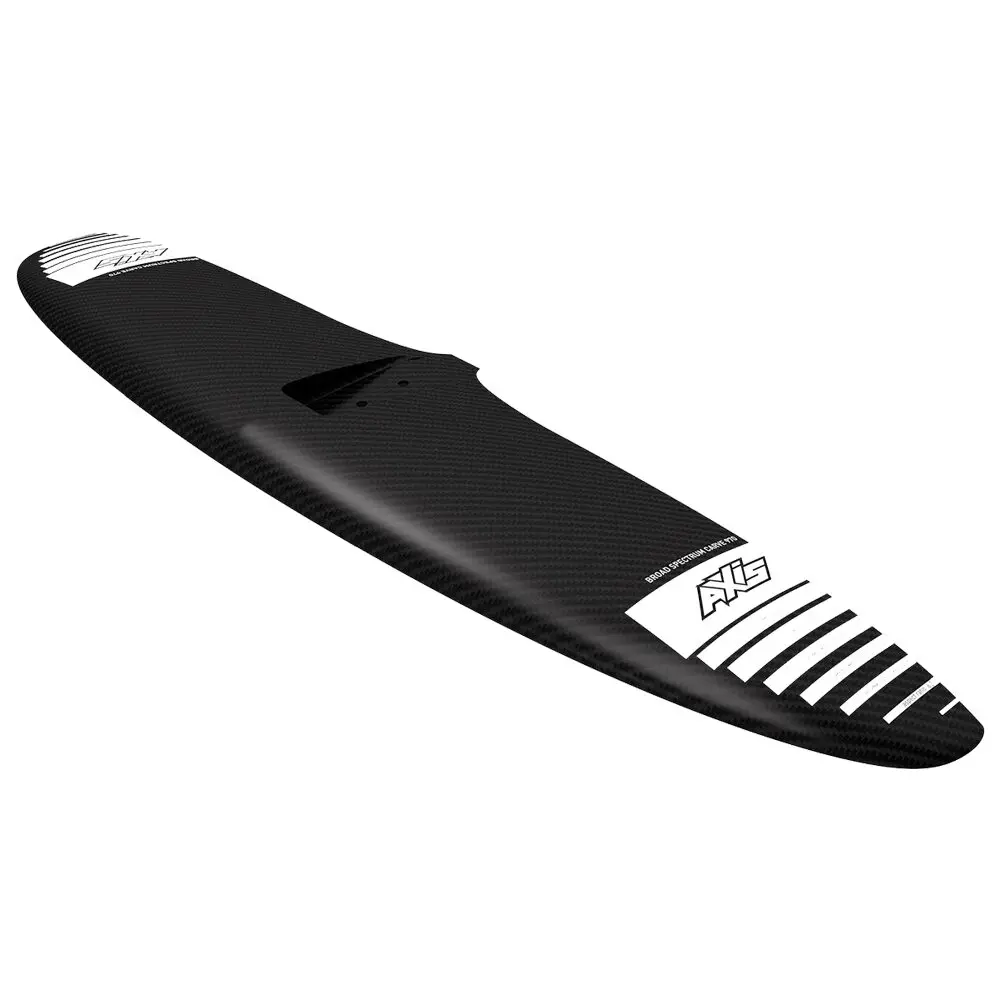

Axis BSC Carbon Hydrofoil Front Wing Set. The ultimate all-rounder, and the place to start your foiling journey.

Our Original Series (1020, 920, 820) performed admirably during the first generation of foiling water sports and are still ideal beginner foils. When it was time to replace this model, we set out to significantly improve speed and range, without losing the easy lifting properties we all loved about the original series.

For the BSC range we completely changed the outline, increasing aspect ratio and reducing thickness for vastly improved speed and glide, while incorporating what we had learned from the HPS project in turn down and twist for optimum turning. However, like the Original, we developed a foil section with a high stall angle. This means it still operates well at slow speeds, so will be forgiving when you make a mistake gybing on a Wind foil or Wing foil. It will also get you up easily and keep you foiling when surfing slow or weak waves.

The result is a foil that has an incredibly wide range of operation – the ultimate all-rounder. One day you could be foiling tiny waves on your SUP, the next you could be screaming across the harbour with a hand wing, all on the same foil.

The 810 BSC foil has quickly become our most popular prone foil, while the 1060 is the foil of choice for first season wing foilers. BSC is the go-to for SUP foiling too. If you want to wing and SUP foil with one setup, the BSC will be the ideal choice.

1120, 1060, 970, 890, 810, 740

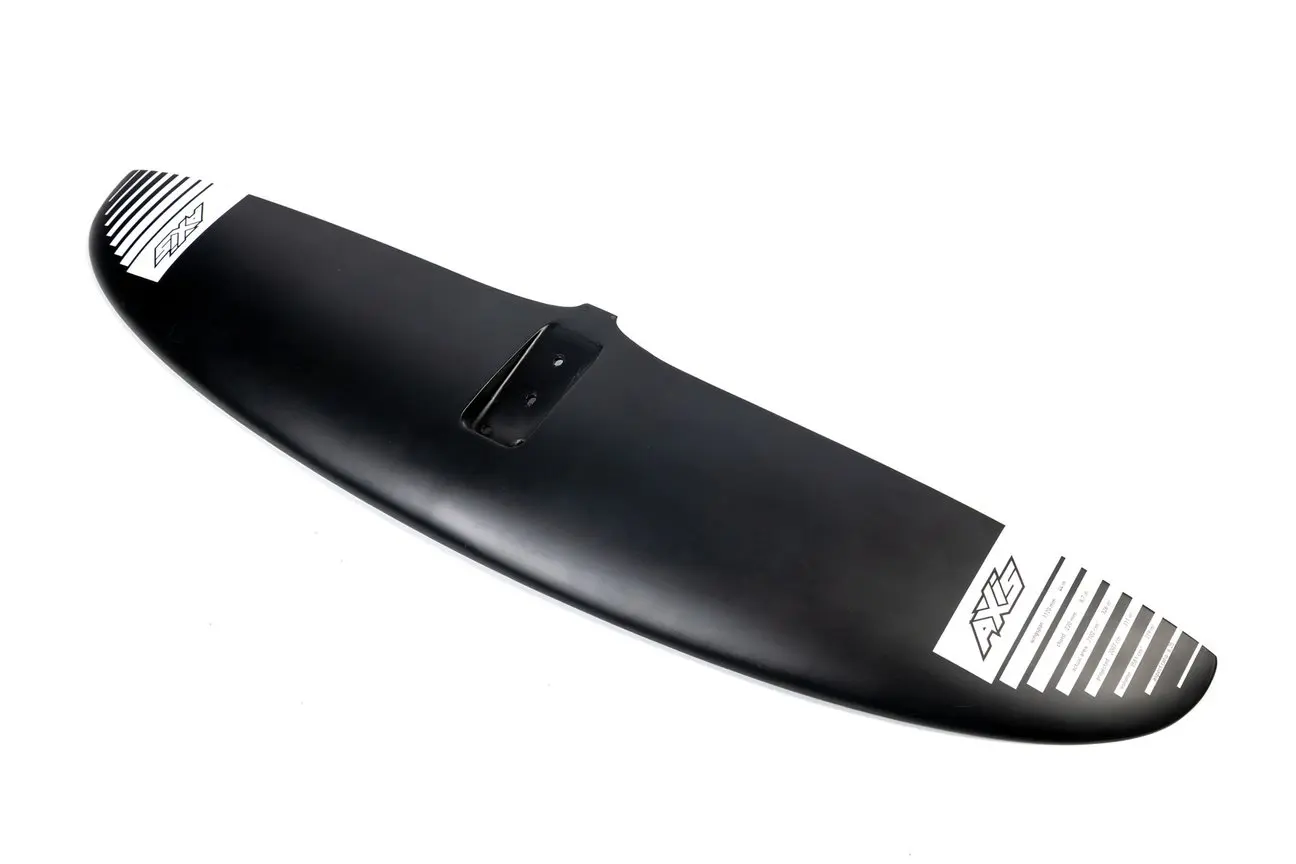

BSC 1120

The BSC 1120 is the easiest wing for all levels, heavier riders and all rounders for WING, SUP, WAKE and PUMP. The 1120 lifts on the smallest bumps and lightest winds. This wing is a massive 1120mm span (44 inches) with over 2100 sq cm surface. A massive front wing, that will foil in the smallest conditions. You will be surprised by the butter smooth riding, good speed range, and great turning for the size.

Ideal for big riders and beginners who learn in small conditions.

Technical Data:

• WINGSPAN: 1120 mm / 44inches
• MAX CHORD: 220mm / 8.6inches
• ASPECT RATIO: 6.25
• ACTUAL AREA 2102 square cm / 326 square inches
• PROJECTED AREA: 2007 square cm / 311 square inches
• VOLUME: 3581 cubic cm / 219 cubic inches

Recommended use:

Wing surfing for all levels and the lightest conditions. Super easy to ride. Downwinding – for beginner downwinders and tiny bumps. SUP / Surf – For very small surf and all levels. Ideal for bigger riders. Wake foiling – All levels – tiny wake. Pump foiling – All levels – Great for learning. Windsurf foiling – All levels – light winds. Kite foiling – Probably too big to kite with

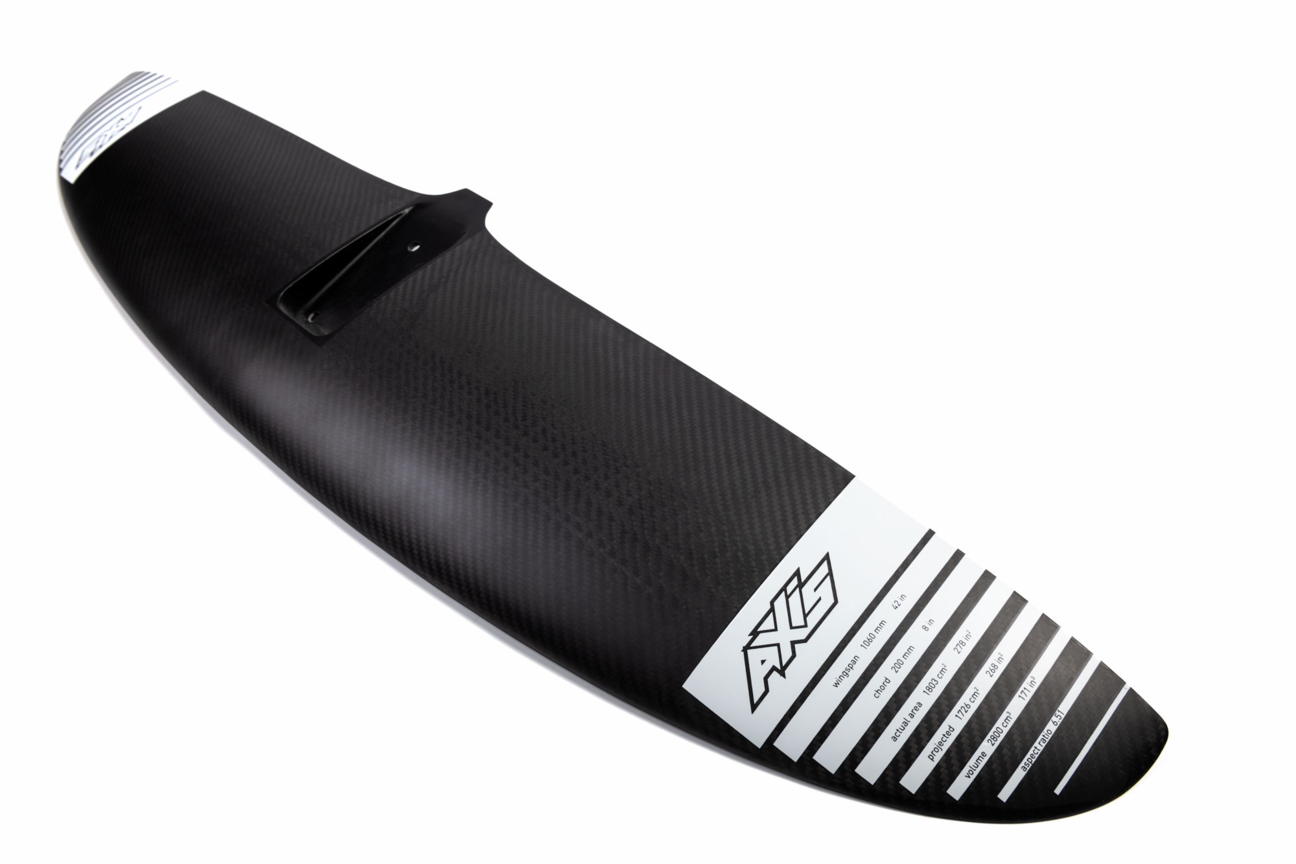

BSC 1060

The BSC 1120 and  BSC 1060 are the easiest wings for all levels, heavier riders and all rounders for WING, SUP, WAKE and PUMP. Very early lift, butter smooth riding, good speed range, and great turning for their size. The  BSC 970 could be the all levels wing for all styles and levels of riding. The 890-810-740 are faster, more technical wings, designed for the skilled SUP, PRONE, WINGING riders who are looking for higher performance in a very easy to ride package.

Technical Data:

• WINGSPAN: 1060 mm / 42 inches
• MAX CHORD: 200mm / 8 inches
• ASPECT RATIO: 6.51
• ACTUAL AREA 1803 square cm / 278 square inches
• PROJECTED AREA: 1726 square cm / 268 square inches
• VOLUME: 2800 cubic cm / 171 cubic inches

Recommended use:

WING Surfing for all levels and medium + conditions. Super stable for the size. Downwinding – Medium+ conditions and intermediate level. SUP / Surf – Medium+ conditions and intermediate level. Wake foiling – Intermediate level. Pump foiling – Intermediate+ level. Windsurf foiling – Intermediate level. Kite foiling – Ideal for all styles, levels and conditions

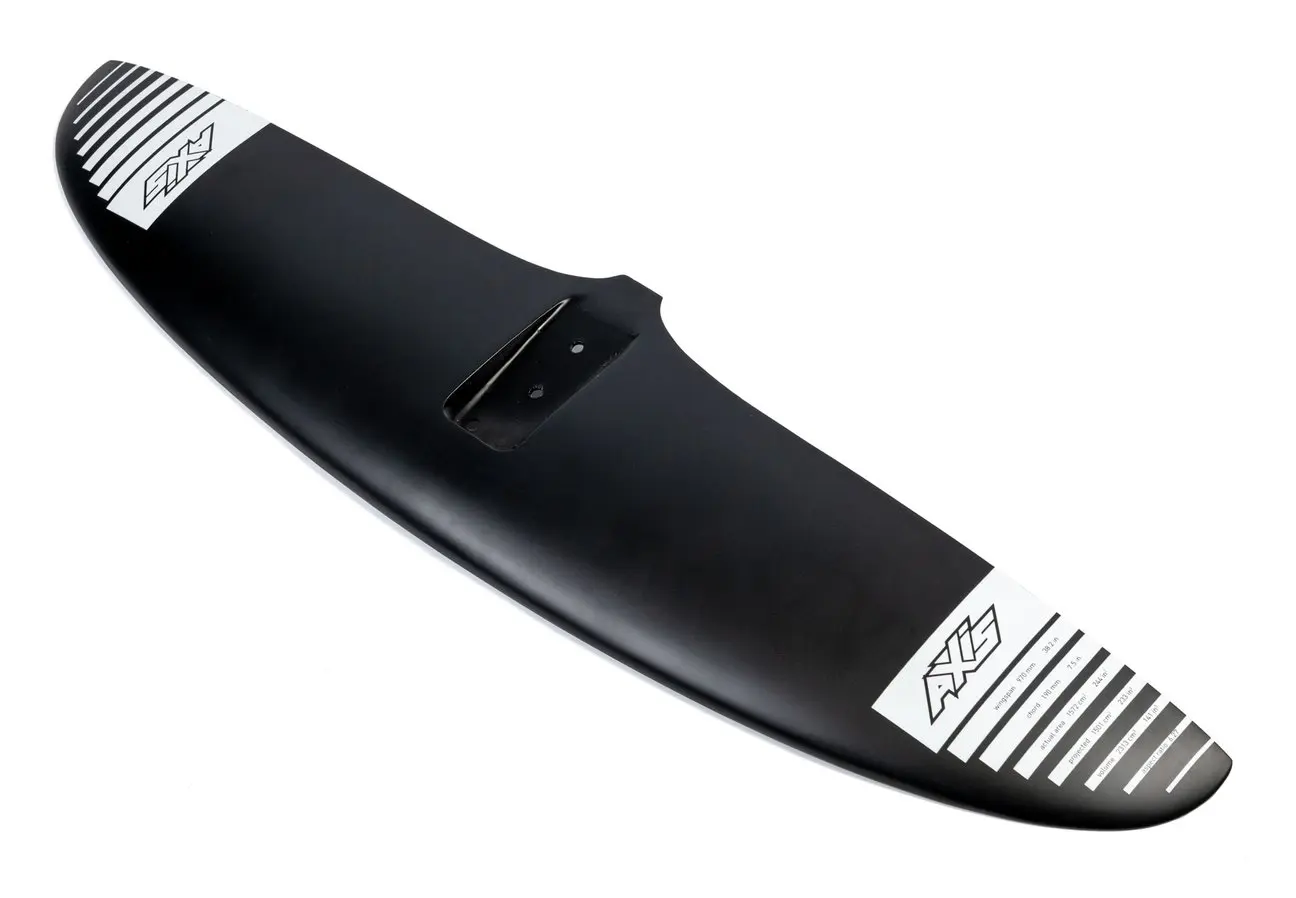

BSC 970

The BSC 1120 and BSC1060 are the easiest wings for all levels, heavier riders and all rounders for WING, SUP, WAKE and PUMP. Very early lift, butter smooth riding, good speed range, and great turning for their size. The BSC 970 would be the all levels wing for all styles and levels of riding. The 890-810-740 are faster, more technical wings, designed for the skilled SUP, PRONE, WINGING riders who are looking for higher performance in a very easy to ride package.

Technical Data:

• WINGSPAN: 970 mm / 38.2 inches
• MAX CHORD: 190mm / 7.5 inches
• ASPECT RATIO: 6.27
• ACTUAL AREA 1572 square cm / 244 square inches
• PROJECTED AREA: 1501 square cm / 233 square inches
• VOLUME: 2313 cubic cm / 141 cubic inches

Recommended use:

WING Surfing for all levels and medium + conditions. Super stable for the size. Downwinding – Medium+ conditions and intermediate+ level. SUP / Surf – Medium+ conditions and intermediate level. Wake foiling – Intermediate+ level. Pump foiling – Intermediate+ level. Windsurf foiling – Intermediate+ level. Kite foiling – Ideal for all styles, levels and conditions.

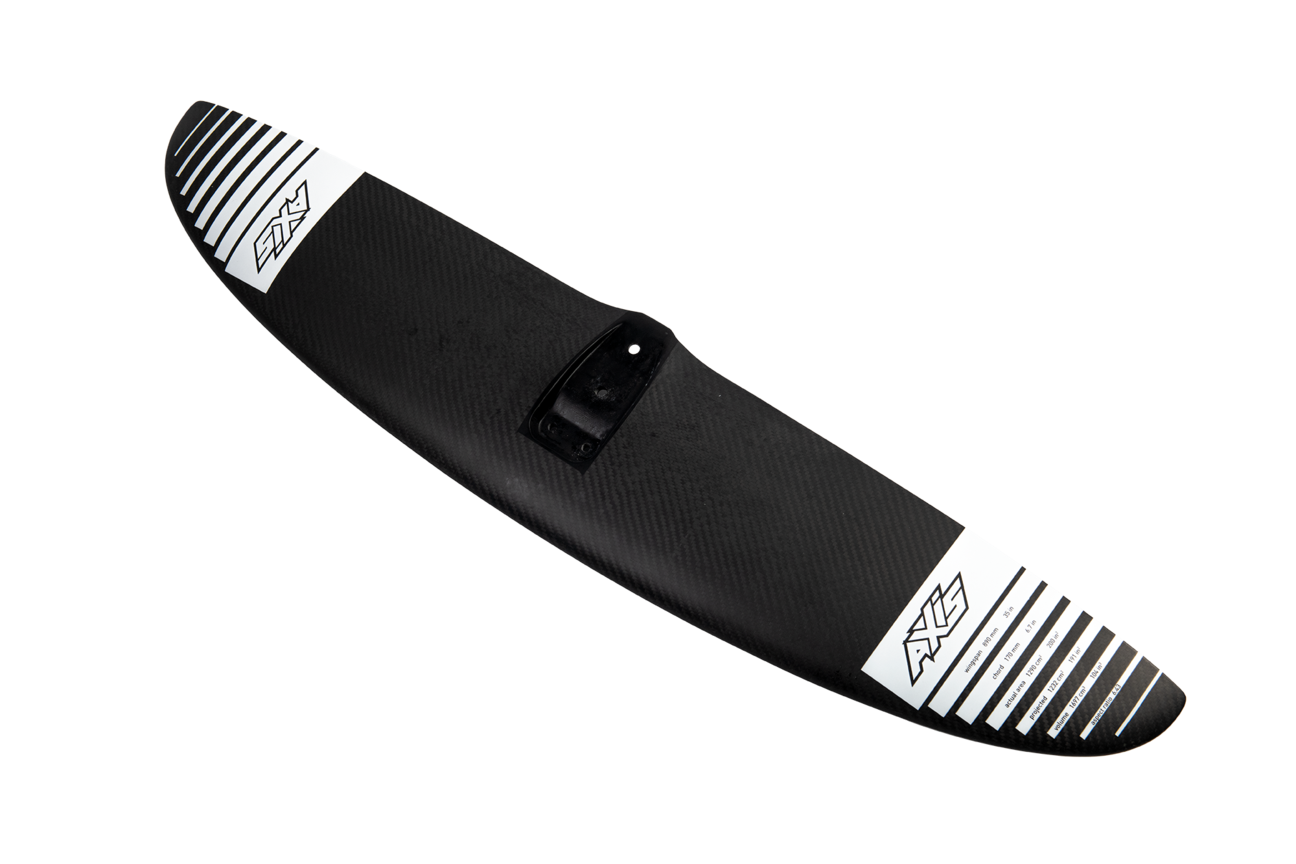

BSC 890

For BSC we use a refined foil section, with extensive speed range, and stability. This makes the BSC wings ideal for all levels of riders and conditions. The 890 / 810 / 740 sizes are designed for performance PRONE, WINGING and KITE foiling. These wings are stable, fast and turn on a dime.

The BSC 1120 and BSC 1060 are the easiest wings for all levels, heavier riders and all rounders for WING, SUP, WAKE and PUMP. Very early lift, butter smooth riding, good speed range, and great turning for their size. The BSC 970 could be the all levels wing for all styles and levels of riding. The 890-810-740 are faster, more technical wings, designed for the skilled SUP, PRONE, WINGING riders who are looking for higher performance in a very easy to ride package.

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH THE BLACK FUSELAGES

Technical Data:

• WINGSPAN: 890 mm / 35inches
• MAX CHORD: 170mm / 6.7inches
• ASPECT RATIO: 6.43
• ACTUAL AREA 1290 square cm / 200 square inches
• PROJECTED AREA: 1232 square cm / 191 square inches
• VOLUME: 1697 cubic cm / 104 cubic inches

Recommended use:

WING Surfing for all levels and medium + conditions. Super stable for the size. Downwinding – Medium+ conditions and intermediate+ level. SUP / Surf – Medium+ conditions and intermediate level. Wake foiling – Intermediate+ level. Pump foiling – Intermediate+ level. Windsurf foiling – Intermediate+ level. Kite foiling – Ideal for all styles, levels and conditions

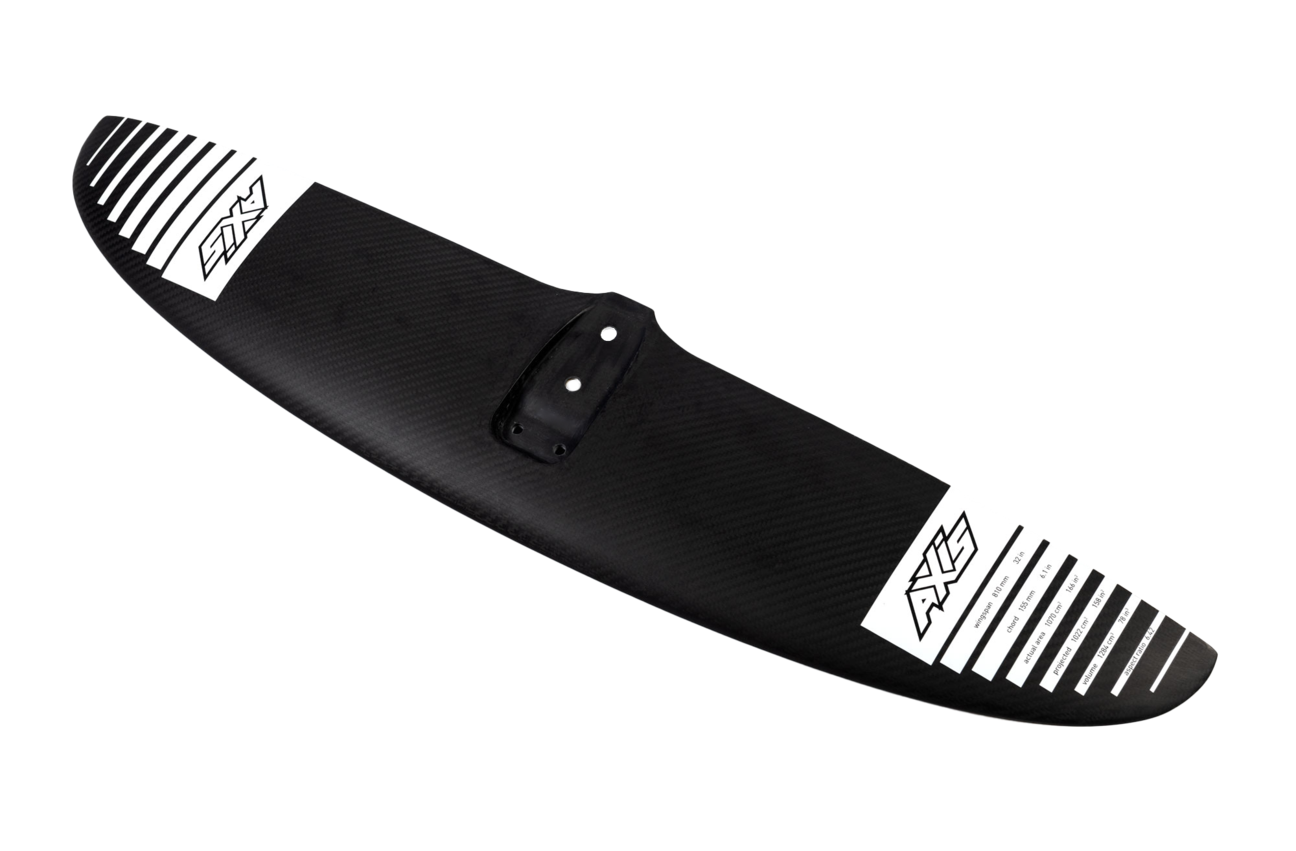

BSC 810

For BSC we use a refined foil section, with extensive speed range, and stability. This makes the BSC wings ideal for all levels of riders and conditions. The 890 / 810 / 740 sizes are designed for performance PRONE, WINGING and KITE foiling. These wings are stable, fast and turn on a dime.

The BSC 1120 and BSC 1060 are the easiest wings for all levels, heavier riders and all rounders for WING, SUP, WAKE and PUMP. Very early lift, butter smooth riding, good speed range, and great turning for their size. The BSC 970 could be the all levels wing for all styles and levels of riding. The 890-810-740 are faster, more technical wings, designed for the skilled SUP, PRONE, WINGING riders who are looking for higher performance in a very easy to ride package.

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH THE BLACK FUSELAGES



Technical Data

• WINGSPAN: 810 mm / 32 inches
• MAX CHORD: 155mm / 6/1inches
• ASPECT RATIO: 6.42
• ACTUAL AREA 1070 square cm / 166 square inches
• PROJECTED AREA: 1022 square cm / 158 square inches
• VOLUME: 1284 cubic cm / 78 cubic inches

Recommended use:

WING Surfing for all levels and medium + conditions. Super stable for the size. Downwinding – Medium+ conditions and intermediate+ level. SUP / Surf – Medium+ conditions and intermediate level. Wake foiling – Intermediate+ level. Pump foiling – Intermediate+ level. Windsurf foiling – Intermediate+ level. Kite foiling – Ideal for all styles, levels and conditions

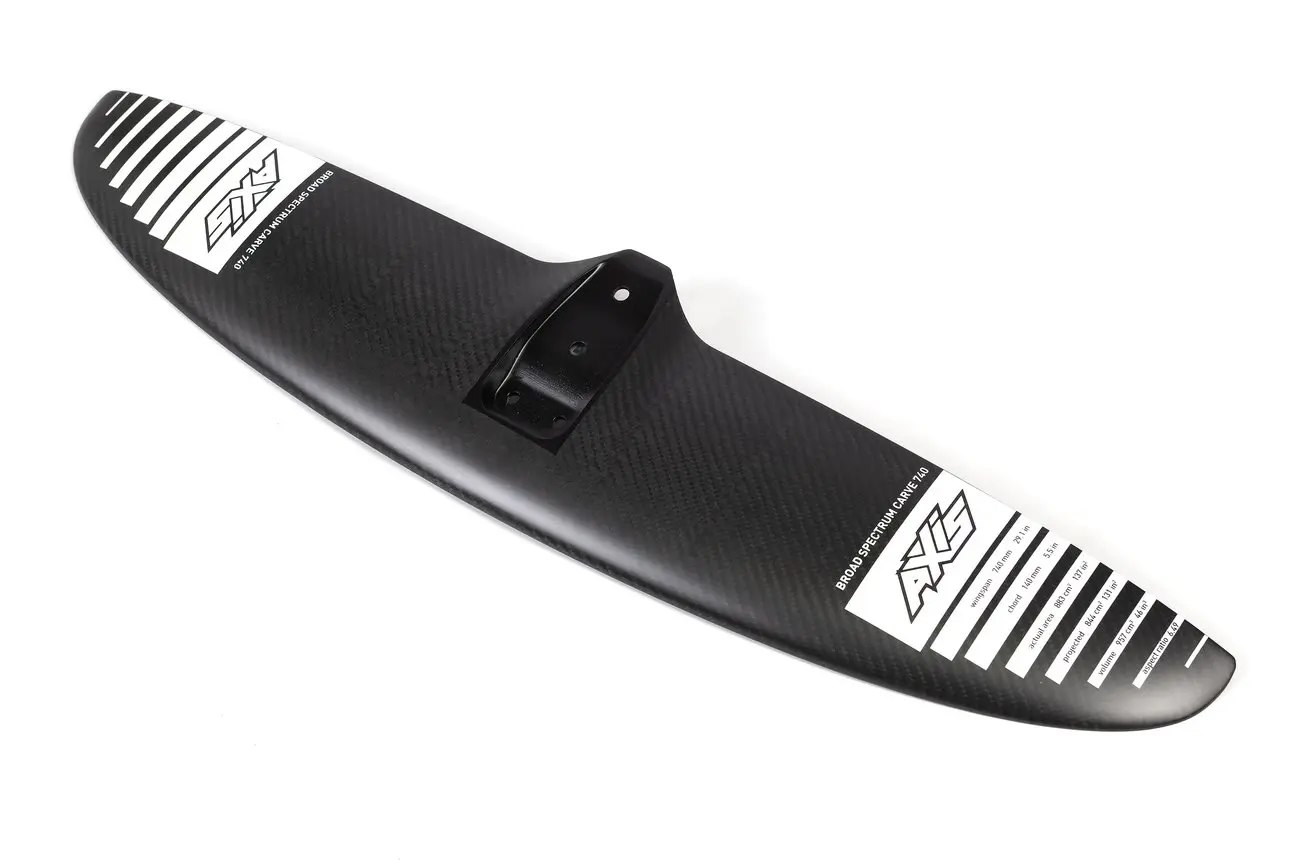

BSC 740

For BSC we use a refined foil section, with extensive speed range, and stability. This makes the BSC wings ideal for all levels of riders and conditions. The 890 / 810 / 740 sizes are designed for performance PRONE, WINGING and KITE foiling. These wings are stable, fast and turn on a dime.

The BSC 1120 and BSC 1060 are the easiest wings for all levels, heavier riders and all rounders for WING, SUP, WAKE and PUMP. Very early lift, butter smooth riding, good speed range, and great turning for their size. The BSC 970 could be the all levels wing for all styles and levels of riding. The 890-810-740 are faster, more technical wings, designed for the skilled SUP, PRONE, WINGING riders who are looking for higher performance in a very easy to ride package.

PLEASE NOTE: THIS WING IS ONLY COMPATIBLE WITH THE BLACK FUSELAGES

Technical Data

• WINGSPAN: 740 mm / 29.13 inches
• MAX CHORD: 140mm
• ASPECT RATIO: 6.49
• ACTUAL AREA 883 square cm / 136.9 square inches
• PROJECTED AREA:  844 square cm / 130.8 square inches
• VOLUME: 757 cubic cm / 46 cubic inches
